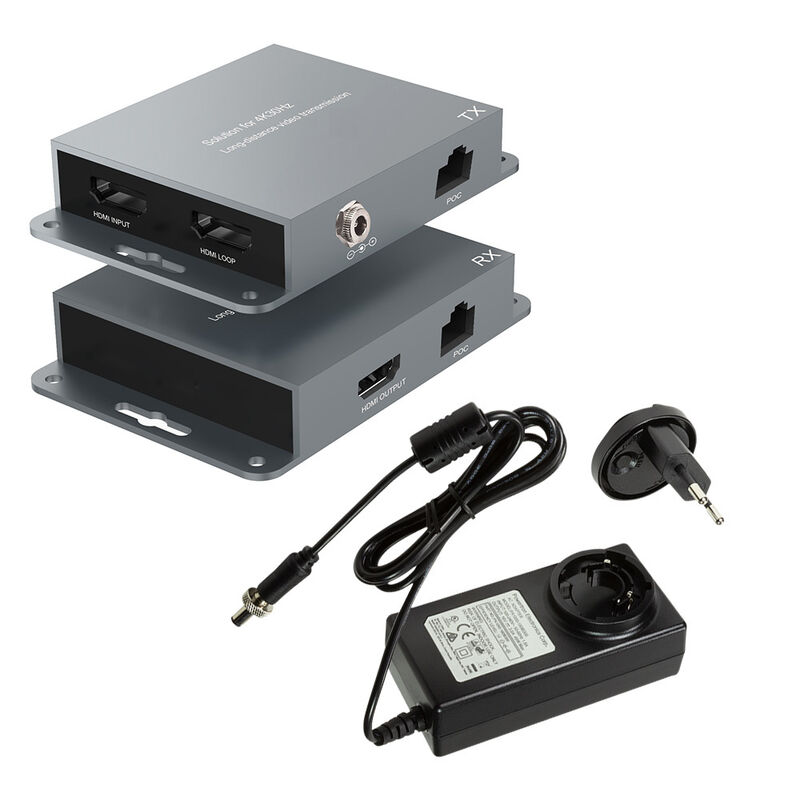

4K@30Hz HDMI Extender with DSC Technology for 70Meter Range in Pro AV Applications

Name: 4K@30Hz HDMI Extender with DSC Technology for 70Meter Range in Pro AV Applications
Brand: SHENZHEN MSLFORCE TECHNOLOGY CO.,LTD.
SKU: UCH0204K
Price: 60.00 USD
Availability: InStock

Brand Name:	MSLFORCE OEM ODM
Model Number:	UCH0204K
MOQ:	1000
Price:	USD50.00~70.00
Delivery Time:	30working days
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS REACH

Materials:

Oxidation Grey Or Silvery

Packaging Details:

Eco-Friendly Paper Package

Supply Ability:

30000PCS/Month

Highlight:

4K@30Hz HDMI Extender

70Meter Range Pro AV Extender

DSC Technology Video Extender

Product Description

4K@30Hz HDMI Extender Over Ethernet - 70 Meter Range for Meeting Rooms and Auditoriums

The MSLFORCE OEM New Design HDMI Extender delivers high-quality 4K@30Hz video transmission over long distances using Cat 5 UTP6 cable, supporting up to 30 meters at 4K30Hz and 70 meters at 2K60Hz.

Compatible with HDMI sources and USB-C devices featuring DP Alt Mode, this extender ensures reliable connectivity for digital signage, presentations, gaming, and professional AV applications.

Powered by advanced DSC (Display Stream Compression) technology, the extender maintains superior video quality while optimizing bandwidth. Full compatibility with HDCP 2.2, HDR formats, and uncompressed/compressed audio ensures premium viewing and audio performance.

Delivering smooth 4K video output with extended/mirror modes for Windows and Mac OS, it supports one local 4K HDMI loop display and one 4K HDMI output on the receiver port simultaneously—ideal for real-time data visualization, streaming, and collaborative presentations.

The MSLFORCE UCH0204K provides simple operation for long-range HDMI extension in professional AV environments. We also offer high-resolution solutions including 4K@60Hz HDMI Extender with KVM function over Ethernet, supporting 70m 4:4:4 HDR and HDCP 2.2.

Product Specifications

Product Name	4K HDMI Extender over Ethernet
Product Model	UCH0204K
Material	Aluminum Casting
DSC Technology	Display Stream Compression Technology + MCU software developed by MSLFORCE
HDMI Resolutions	One Local HDMI Loop: 3840×2160@30Hz, One HDMI Output on Receiver: 3840×2160@30Hz
HDMI Version	HDMI 2.0 / HDCP 2.2
ARC/CEC	Supports ARC/CEC
Audio Output	Audio output support from PC source or HDMI terminal display/TV/soundbar from receiver
Display Modes	Extended Desktop Single & Dual View, Clone
Software Support	Windows 7, 8, 10, 11 (32/64-bit), Linux OS (Ubuntu, Red Hat, SUSE), macOS, Android, ChromeOS
Operation Temperature	Commercial: 0°C to +70°C, Industrial: -40°C to +85°C
Warranty	3 Years

Ideal Applications for Long-Distance and Conference Room Use

This solution supports extended reach installations where standard hubs are insufficient. Its flexibility and high durability make it perfect for permanent AV installations, shared docking stations, or hidden connectivity points where aesthetics and accessibility are crucial.

Dual HDMI Output - Distributes HDMI signal to one local and one remote screen simultaneously
Long-Distance Signal Transmission - Extends high-quality HDMI video up to 70 meters for large spaces
4K Ultra HD & HDR Support - Delivers sharp 4K@30Hz (4:4:4) resolution with High Dynamic Range

Compatible with UCH019ProAV HUB2

The Model No: UCH019ProAV_HUB2 features an 8-in-1 USB-C female design, converting the 4K HDMI extender transmission to USB-C host. The UCH0204K includes a mounting bracket for under-desk or on-desk installation, supporting all connections within conference settings for maximum flexibility and performance.

Example Use Cases

Corporate Meeting Rooms

Connect video bars, PTZ cameras, and peripherals for seamless video conferencing
Extend hub closer to displays or cameras for optimized cable routing
Connect dual displays for enhanced meeting productivity and collaboration
Integrate with USB peripherals like video conferencing cameras or speakerphones

Hybrid Workstations

Supports employees requiring dual monitors for multitasking during remote and in-office work.

Training and Education

Dual displays provide ideal setups for classrooms or training sessions, allowing simultaneous presentation and note-taking.

Home Office Video Conferencing

Perfect for personal setups requiring professional-quality video and networking capabilities.

Interested in customization options for market protection, branding, additional features, or packaging? MSLFORCE can tailor this product to meet specific market demands.

Certifications and Intellectual Property Protection

Comprehensive solution for product intellectual property protection:

Trademark

Appearance Patent

EU Patent

Product CE

ROHS & REACH

FC Certification
